RWC offer a wide range of Elevators and Escalators Products

Each series itself holds numerous products for the extensive of a particular product range


1. FLAT TRAVELLING CABLE

  • TVVBP2 24C  (20*0.75 + 2*2P*0.75 )
  • TVVBP   38C  (24*0,75 + 4*2P* 0.75 + 6*1.5)
  • TVVBPG 38C (24*0.75 + 4*2P*0.75 + 6*1.5)
  • TVVBG-TV     (12*0.75 + 1CX)
  • and others

2. SUSPENSION DEVICES

  • Cable clamping range 3~22mm
  • Cable clamping range 55mm
  • Cable clamping range 70mm
  • Cable clamping range 100mm
  • Suspension devices for Flat Cable

3. COMPENSATING CHAIN

  • Cable weight 1.5 kg/m
  • Cable weight 2.2 kg/m
  • Cable weight 3.0 kg/m
  • Cable weight 3.7 kg/m
  • Cable weight 4.5 kg/m
  • Cable weight 5.2 kg/m
  • Cable weight 6.0 kg/m

4. DAMPING DEVICES


5. ELEVATOR WIRE ROPE

  • Construction : 8x19S, 8x25Fi, 6x19S, 6x25Fi, 6x37Fi
  • Grade : A (1620N/mm2) & E (1320N/mm2)

6. AIR CONDITIONER FOR ELEVATOR

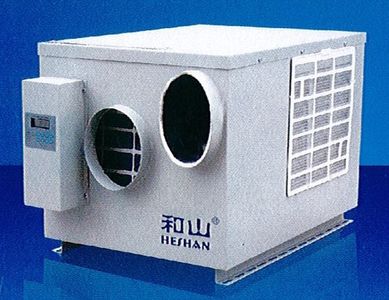

        MODEL TK-26Y

Technical Specification:

Voltage/Hz : 220-230VAC/50Hz

KW/A : 2600W / 4.3A

Air Flow (High/Low) : 400 / 330 m3/hr

Air out, Air return : from bottom, to bottom

Weight : 40kg

Dimension : 615*455*435 mm (L*W*H)

* PDF Download *

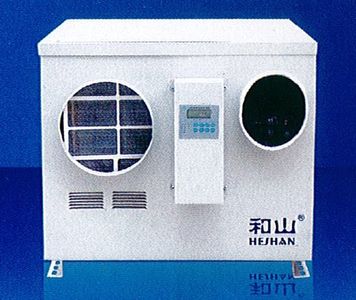

        MODEL TK-35Y/Q

Technical Specification:

Voltage/Hz : 220-230VAC/50Hz

KW/A : 3500W / 5.8A

Air Flow (High/Low) : 570 / 450 m3/hr

Air out, Air return : from front, to front

Weight : 58kg

Dimension  : 640*570*510 mm (L*W*H)

* PDF Download *

7. HOISTWAY WIRE
  • 40C, 19C, 12, 7C, 4C, 2C and etc

8. CONNECTORIZATION

  • Travelling Cable
  • Hoistway Wir

9. TRUNKING & WIRING MATERIAL (KITTING)

  • Trunking
  • PVC Cable
  • Tubing Fitting
  • Connectors & Coupings
  • Accessories

10. CAR HALL SIGNAL COMPONENTS


  • Parking Key Switch
  • Elevator Button
  • Car Operation Panel

11. ELEVATOR & ESCALATOR SPARE PARTS ACCESSORIES


  • Car Safety
  • Safety Link
  • Oil Buffer
  • Rail Clip (8K, 13K, 18K, 24K, 30K)
  • Hanger Rail
  • Limit Switch
  • Hanger Roller (c/w Bearing)

  • Cross Flow Fan 110VAC, 220VAC


   MODEL  QF-330
   Technical Specification
   Voltage : 110/230VAC, 50Hz
   Power : 25W
   Noise : <46db(A)
   Air Flow : 6+/-0.5 M3/min
   Speed : 1100+/-100 rpm
   *PDF Download*

   MODEL  FB-9B

   Technical Specification
   Voltage : 230VAC, 50Hz
   Power : 25W
   Noise : <46db(A)
   Air Flow : 4.5+/-0.5 M3/min
   Speed : 1100+/-100 rpm
  *PDF Download*
  • Sirocco Fan (110VAC, 220VAC)
  MODEL  VF-140

  Technical Specification
  Voltage : 110/230VAC, 50Hz
  Power : 30W
  Noise : <43db(A)
  Air Flow : 2.7+/-0.5 M3/min
  Speed : 1000+/-100 rpm
  *PDF Download*
  • Hall Gong
  • Wire Rope Grease







  *We reserve the right to change the above information without prior notice
